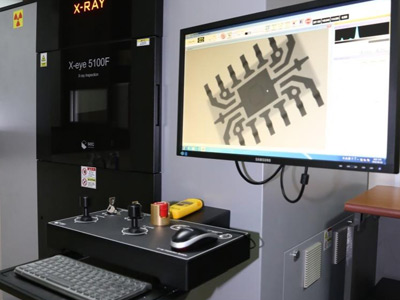

X-eye 5100F X-ray Inspection System
Quality
Quality Assurance Process
A controlled workflow covering supplier review, incoming inspection, anti-counterfeit checks, storage, delivery and after-sales support.
Quality Equipment Status
Practical X-ray Inspection Equipment
Application - Non-destructive inspection
MFG: SEC · Model: X-eye 5100F · 100kV - 130kV
Equipped with a micro-focus closed tube and high-definition flat panel detector, supporting high-quality image capture for component inspection.
Main Inspection Purpose
- Confirm bonding alignment and condition
- Check wafer and pin size, soldering and joints
- Confirm spacing and dimensions in millimeters
- Inspect void presence and related quality risks
Inspection Equipment Overview

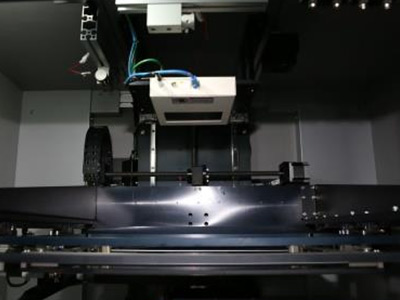

Micro-focus X-ray Imaging Chamber

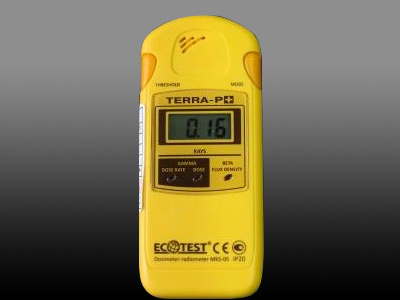

Radiation / ESD Safety Meter

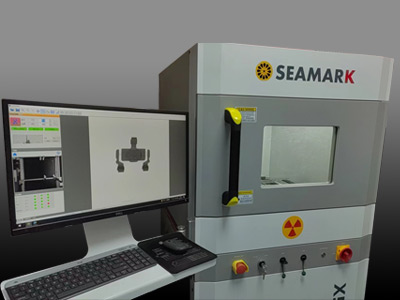

SEAMARK X-ray Inspection System

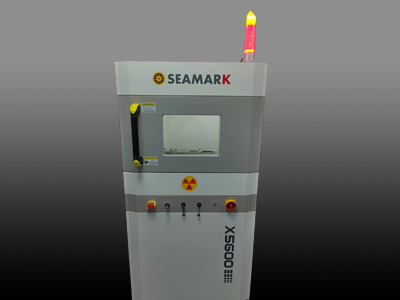

BGA / Component Inspection Station

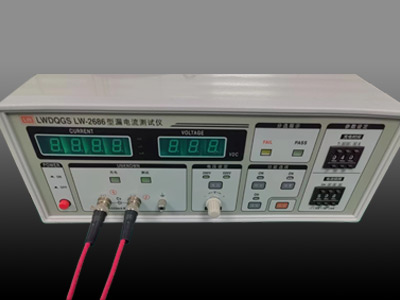

Precision DC Power Supply

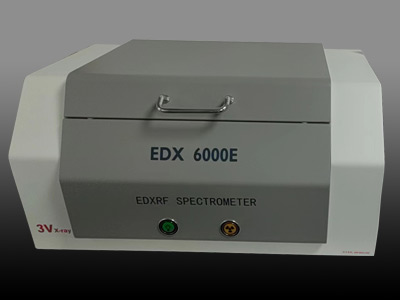

EDX 6000E XRF Spectrometer

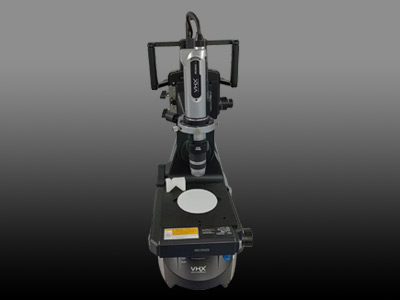

Digital Microscope Inspection Tool
01
Supplier Review
02
Sourcing
03
Incoming Inspection
04
Storage
05
Delivery
06
After-sales Support
Supplier Qualification
Review supplier background, source credibility, transaction history and risk level before purchasing.
Vendor Rating System
Maintain practical supplier records to guide repeat sourcing decisions and risk control.
Incoming Inspection
Check labels, packaging, markings, quantity and visible physical condition on arrival.
Anti-Counterfeit Control
Apply risk-based authenticity checks and communicate source transparency to customers.
ESD Protection
Use ESD-aware handling for sensitive semiconductor components.
Warehousing & Packaging Standards
Store and pack components with moisture, ESD and export delivery requirements in mind.
Traceability Records
Record available source, batch, date code and shipment information for follow-up.
RMA Process
Provide clear after-sales communication and qualified RMA handling.
